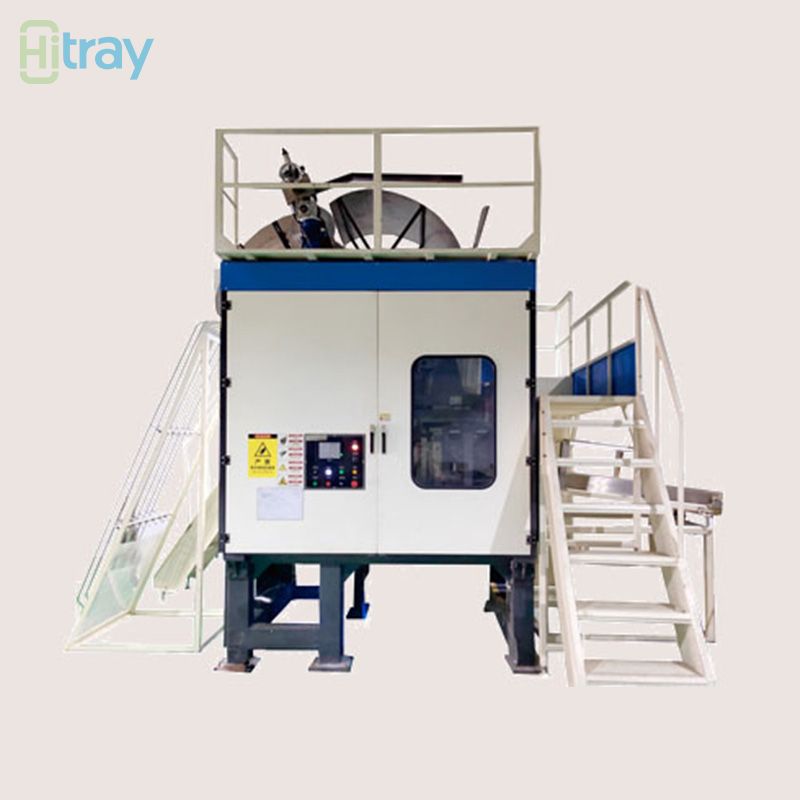

Hi-tray Automatic Fast Food Bowl Tray Container Lunch Box Blister Packing Forming Machine

Products Description

Application

Product Features

1) Control system: The machine realizes the full automatic control of the equipment through the combination of PLC, 3D industrial man-machine interface, servo motor, photoelectric, temperature module and other systems. The operation is simple and intuitive, reducing the requirements of operation technicians, and zero basic staff can operate is our pursuit.

2) Traction: High-power servo traction sheet feeding device ensures the traction length of sheet (thickness: 0.1mm-1.5mm) and accuracy: ±0.05mm.

3) Structure: The four driving stations of forming, punching, punching and stacking are independently controlled by Delta servo motor. The five-sided machining center imported from Germany has refined carving, which ensures high efficiency and stability of production with high precision.

4) Forming: far-infrared ceramic heating brick, super long upper and lower heating system and positive and negative pressure forming device are adopted to ensure the high difficulty material and temperature resistant material can be heated evenly, baked thoroughly, multi-function forming control, ensure the product thickness is uniform and the appearance is exquisite, and ensure the yield reaches 99.9%.

5) Molds: aluminum alloy (imported breathable aluminum) for forming molds is CNC precision engraving and milling, with positive and negative pressure and water circulation structure; The punching mould is made of DC53 steel hardware knife or laser knife (depending on the product); The punching die is made with a movable structure laser cutter, which improves the punching accuracy (within ±0.2mm error), reduces the cost of the die, shortens the manufacturing cycle of the die, and makes the die change simple.

6) Complete machine: welded steel box, firm structure, no deformation, bracket and box are formed by pressure, high compactness (weight 6500KG), shape with sliding door design, beautiful and generous, convenient maintenance and operation.


Changzhou Huisu Qinye Plastic Group is a leading manufacturer and exporter with over 20 years of experience in the plastics industry. HSQY Plastic has invested and cooperated with more than 12 factories and has more than 40 production lines for plastic products. We offer a wide range of Plastic Films, Sheets, and Products such as PVC sheets, PVC films, PET sheets, PP sheets, PS sheets, PC sheets, PVC foam sheets, Acrylic sheets, and more. HSQY Plastic invested in a new factory to focus on the R&D and production of CPET trays. Thanks to our integrated food packaging supply chain, we also offer biodegradable, plastic, and other food packaging. In addition, sealing films and sealer machines are provided.

FAQ

Q: Do you provide samples? Is it free or extra?
A: Yes, we can provide free samples, and you only need to pay for the freight - by international express (DHL, FedEx, UPS, TNT or Aramex, etc.).

Q: How about collaborative process?
A: Order details communication (payment:TT/LC/APC), Drawings (1-2 days), Sample mold (7-10 days), Samples production (48h), Finished mold (14-20 days), Tray Production (7-14 days), Packing and shipping.

Q: What's your payment terms?
A: Payment ≥US$1000, 30% T/T in advance, balance before shipment. We also accept L/C at sight.

Q: What is your standard packing?
A: Normal packing type: PE bag + paper carton or PE bag + paper carton + pallet. Packing size: Packaging carton size according to the mold or as per customer's requirement.

Q: How long is your delivery time?
A: Generally it is 7-10 days after receiving your payment.
